In today’s competitive label converting market, brand owners demand more: thinner films, higher clarity, and sustainable production. Heat-sensitive substrates like PE, BOPP, and shrink sleeves have become the industry standard. However, ensuring complete ink polymerization without heat damage to these delicate materials has become a defining factor for a printer’s core competitiveness.
1.The "Danger Zone" of Heat-Sensitive Substrates
Converters often face these critical issues when handling filmic materials:
-
Physical Deformation: PE and thin films easily stretch or wrinkle under high temperatures.
-
Registration Failure: Even 1mm of thermal expansion leads to misaligned multi-color printing.
-
Adhesive Migration: Persistent heat can degrade the adhesive layer or cause leakage, damaging press rollers.
2.Conventional Mercury Lamps: The Hidden Efficiency Killer
Conventional mercury lamps are essentially heaters. Only about 25% of their spectral output is UV for curing; the remaining 75% is infrared radiation (heat).
-
Heat Accumulation: Lamp surfaces can reach 800°C. If the press slows down or stops, residual heat can melt the web instantly.
-
Energy Waste: To counter high heat, complex chill roller systems are required, leading to significantly higher electricity costs.

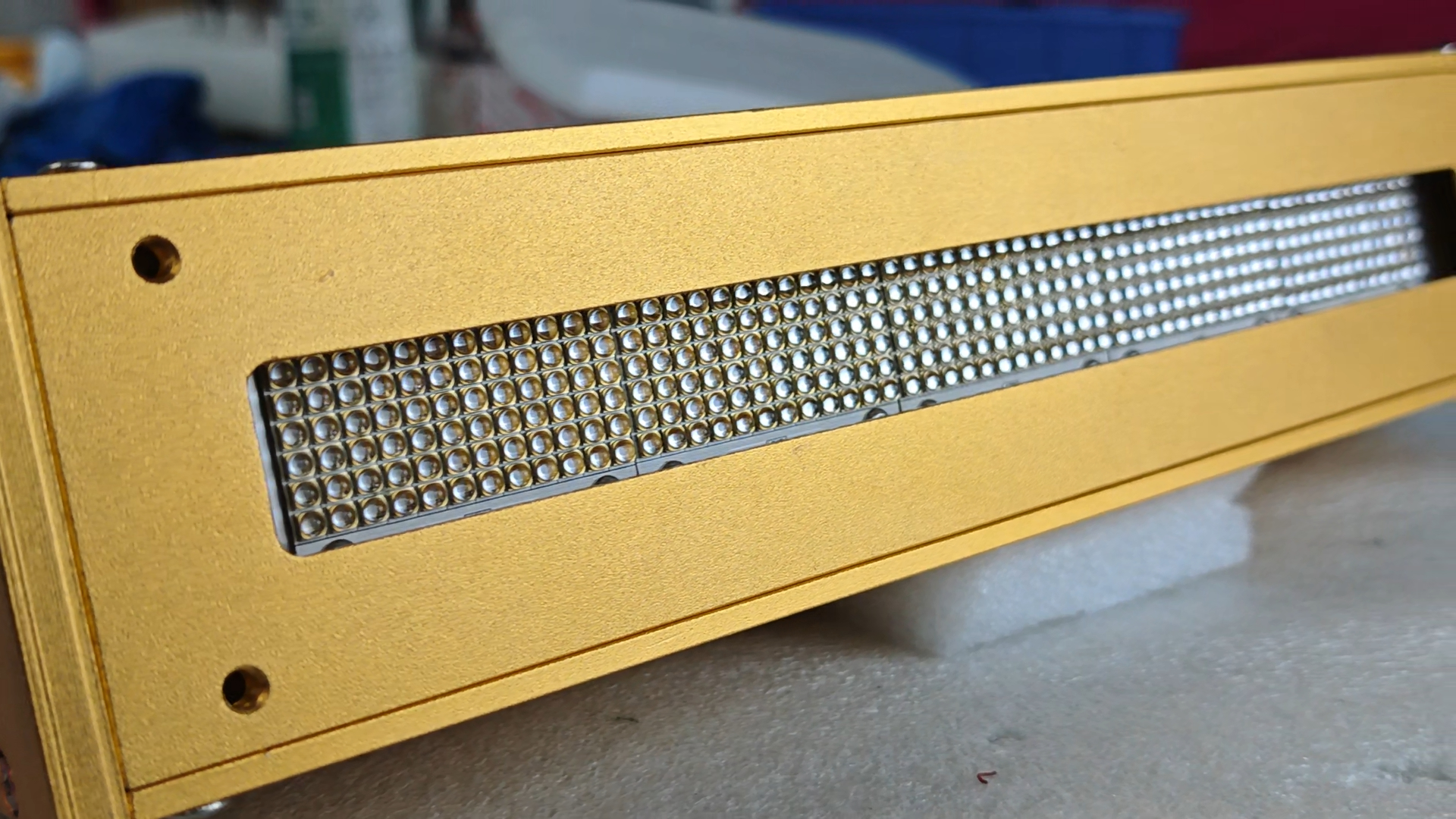

3.UV LED: A Generational Leap in Cold Curing
UV LED is more than just energy saving; it’s a process revolution.
-
Monochromatic Cold Light: UV LED emits a narrow spectrum (395nm) with zero infrared. Substrate temperature rise is typically kept within 5°C-10°C.
-
Instant Response: Millisecond on/off response ensures consistent curing at any press speed and eliminates the risk of burnt webs during stops.
-
Stability: With over 20,000 hours of lifespan, it ensures identical quality from the first meter to the last.
4.Conclusion: Investing in Future Productivity
Transitioning to UV LED means you can handle thinner substrates (like 12μm BOPP), accept more challenging jobs, and significantly reduce your scrap rate.
