Achieving high-quality prints and production efficiency starts with the correct equipment. However, many printing factories face critical challenges such as ink adhesion failure, substrate deformation due to overheating, or skyrocketing energy bills due to mismatched curing systems. When it comes to UV curing lamp selection.
Core Premises of UV Curing Lamp Selection
To ensure the best results, the selection process relies on two fundamental principles:
1. Process Adaptation Select lamps based primarily on printing speed and substrate thickness. This ensures the curing process matches the physical requirements of the production line.
2. Ink Matching Confirm compatible wavelength, minimum irradiation intensity, and energy demand according to the ink supplier's parameter sheet. Proper UV curing lamp selection requires aligning the lamp's output with the ink's curing needs.
Process-Specific Schemes for UV Curing Lamp Selection
Different printing technologies and substrates require highly tailored light source configurations. Below are the specific recommendations optimized for actual industrial production:
1. Offset Printing (High-Speed & Fine Packaging)
-
Target Applications: High-end commercial printing, luxury packaging, and cold foiling processes where thermal management is critical.
-
Machine Compatibility: Ideal for upgrading and seamless retrofitting on high-speed sheet-fed offset presses such as Heidelberg Speedmaster, Roland 700, and KBA.
-
Recommended Type: High-efficiency LED-UV curing systems (preferred for energy-saving) or high-frequency mercury lamps.
-
Core Parameters: Wavelength 365nm / 395nm, irradiation intensity $\ge 800\text{ mW/cm}^2$ ($\ge 1200\text{ mW/cm}^2$ for ultra-high-speed lines), LED power 300–500W/m.
-
Key Requirements: Irradiation uniformity $\ge 95\%$, instant start-stop capability to match press sync signals, and low heat emission to prevent thin film substrate deformation.
2. Flexographic Printing (Label & Flexible Packaging)
-
Target Applications: Narrow-web and wide-web flexo printing on heat-sensitive thin films (薄膜), labels, and food packaging.
-

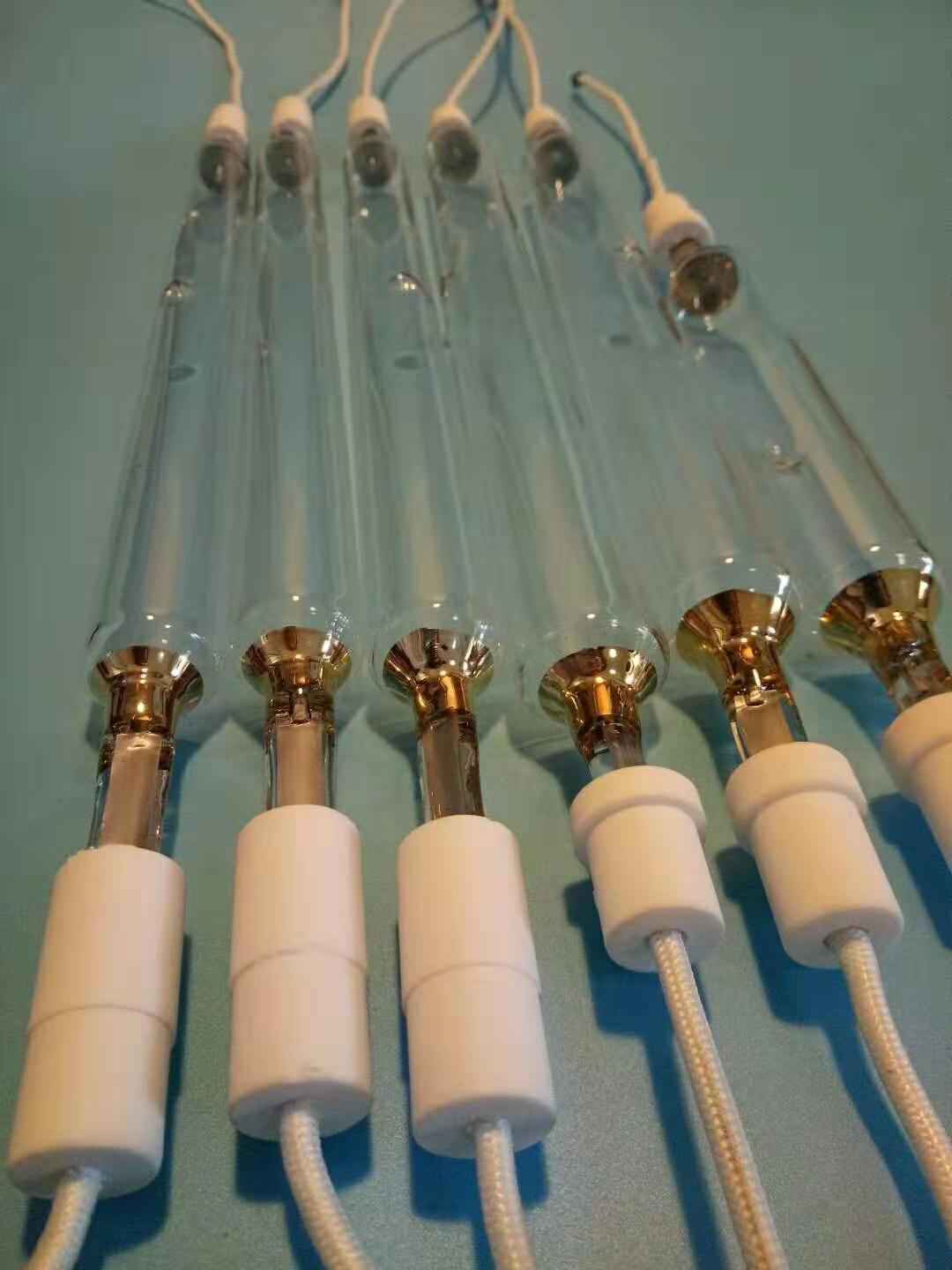

Recommended Type: Dedicated industrial UV LED curing lamps or medium-pressure mercury lamps.
-
Core Parameters: Wavelength 365nm / 395nm, peak irradiation intensity $\ge 600\text{ mW/cm}^2$ ($\ge 1000\text{ mW/cm}^2$ for high-speed flexo), energy density $\ge 800\text{ mJ/cm}^2$.
-
Key Requirements: Customizable lamp length to fit compact flexo stations, high vibration resistance for continuous production, zero ozone emissions, and excellent ink adhesion control on non-porous substrates.
3. Screen Printing (Thick Ink Layers & Special Effects)
-
Target Applications: Industrial nameplates, automotive glass, tactile varnish, and heavy-pigment specialty printing.
-
Recommended Type: High-power LED-UV lamp systems (395nm for deep penetration) or medium-pressure mercury lamps.
-
Core Parameters: Wavelength 365nm (standard) or 395nm (specifically for dark, opaque, and thick ink layers), irradiation intensity $\ge 500\text{ mW/cm}^2$ ($\ge 800\text{ mW/cm}^2$ for specialty coatings), energy density $\ge 1500\text{ mJ/cm}^2$.
-
Key Requirements: Deep curing capability to ensure the bottom ink layer achieves total polymerization (preventing surface-only curing), adjustable lamp-to-substrate distance, and robust thermal management for heavy-duty setups
Frequently Asked Questions about UV Lamp Selection
-
Q1: Can I replace my traditional mercury lamps with LED-UV lamps directly on an old offset press?
-
A: Yes. Seamless retrofitting is highly achievable. However, you must ensure the LED system's cooling (water-cooled or air-cooled) and synchronized signal docking match the existing machine's speed.
-
-
Q2: Why does thick or dark screen printing ink require a 395nm wavelength instead of 365nm?
-
A: 395nm wavelengths have deeper penetration capabilities, which is crucial for curing thick, heavily pigmented ink layers without leaving the bottom uncured.
-
