Achieving high-quality prints and production efficiency starts with the correct equipment. When it comes to UV curing lamp selection, manufacturers must carefully balance printing speed, substrate thickness, and energy output. This guide outlines the core principles and process-specific schemes to help you identify the perfect UV system for your needs.
Core Premises of UV Curing Lamp Selection
To ensure the best results, the selection process relies on two fundamental principles:
1. Process Adaptation Select lamps based primarily on printing speed and substrate thickness. This ensures the curing process matches the physical requirements of the production line.
2. Ink Matching Confirm compatible wavelength, minimum irradiation intensity, and energy demand according to the ink supplier's parameter sheet. Proper UV curing lamp selection requires aligning the lamp's output with the ink's curing needs.
Process-Specific Schemes for UV Curing Lamp Selection
Different printing technologies require different light source configurations. Below are the specific recommendations:
1. Offset Printing (High-Speed & Fine)
Recommended Type: LED-UV lamp (preferred), high-frequency mercury lamp.
Core Parameters: Wavelength 365nm/395nm, irradiation intensity ≥800mW/cm² (≥1200mW/cm² for high speed), LED power 300-500W/m.
Key Requirements: Irradiation uniformity ≥95%, fast start-stop capability, and low heat emission to avoid substrate deformation.
2. Flexographic Printing (Film/Packaging Adaptation)

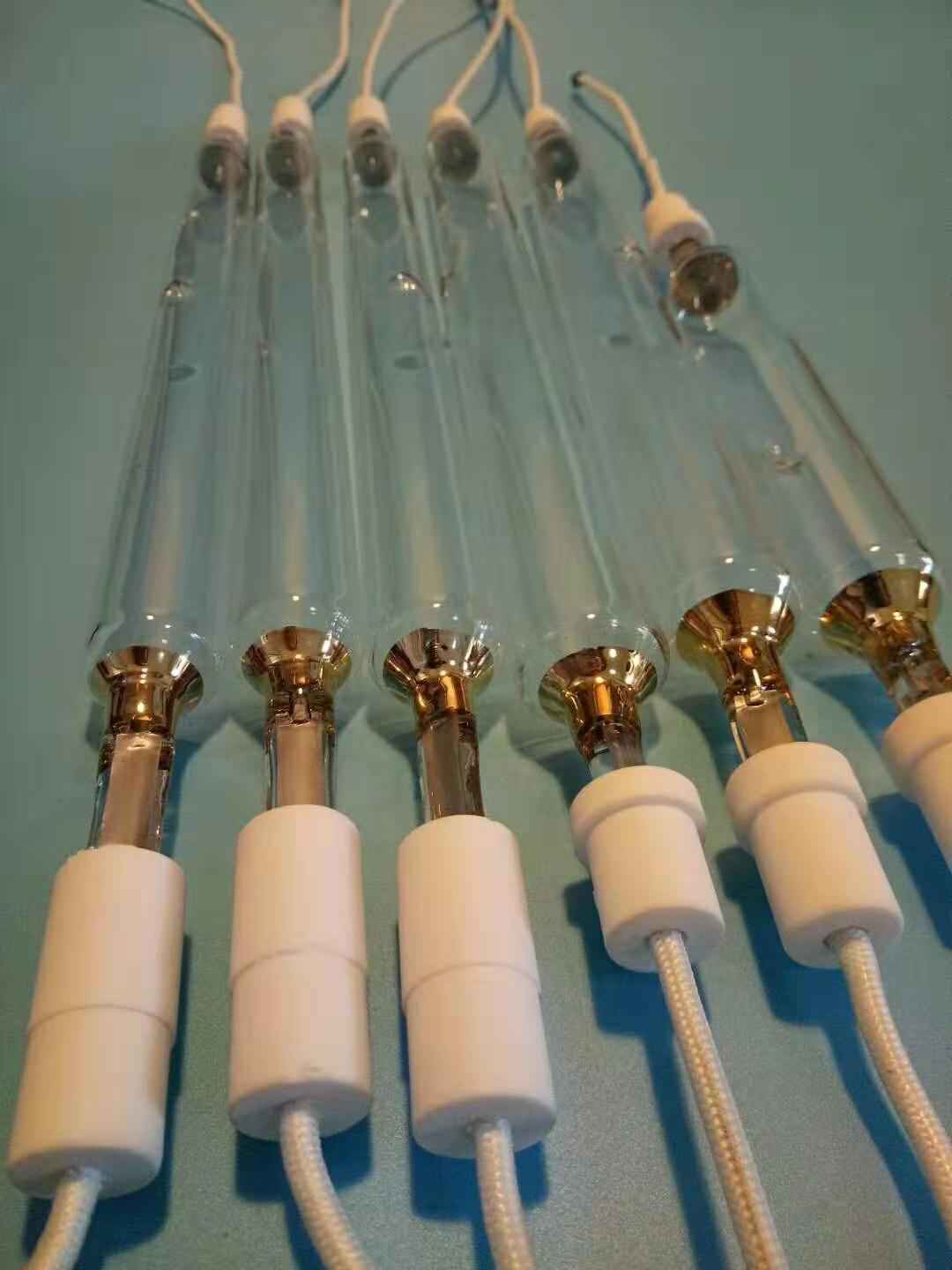

Recommended Type: LED-UV lamp, medium-pressure mercury lamp.
Core Parameters: Wavelength 365nm/395nm, irradiation intensity ≥600mW/cm² (≥1000mW/cm² for high speed), energy density ≥800mJ/cm².
Key Requirements: Customizable length, high vibration resistance, and no ozone pollution.
3. Screen Printing (Thick Ink Layer/Special Effects)
Recommended Type: Medium-pressure mercury lamp, high-power LED-UV lamp.
Core Parameters: Wavelength 365nm (use 395nm for dark, thick ink layers), irradiation intensity ≥500mW/cm² (≥800mW/cm² for thick layers), energy density ≥1500mJ/cm².
Key Requirements: Stable energy output, adjustable lamp distance, and high temperature resistance.
4. Digital Printing (Personalized & Precise)
Recommended Type: LED-UV lamp (only recommended type for this process).
Core Parameters: Wavelength 395nm, irradiation intensity ≥700mW/cm², stepless energy adjustment range from 100-2000mJ/cm².
Key Requirements: Linked control with the printer, uniform lamp bead arrangement, and low electromagnetic radiation.
