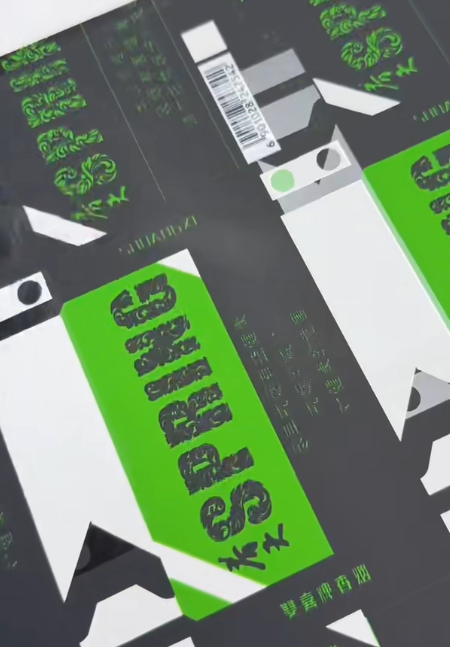

In the high-end packaging industry—ranging from luxury cosmetic boxes to specialty labels—sheet-fed gravure printing is the gold standard for applying thick, consistent layers of flocking adhesive. However, "wet ink" or "insufficient curing" remains a critical production bottleneck.
When flocking ink fails to dry, it leads to blocking (sheets sticking together in the stack), fiber shedding, and costly downtime. While Hot Air and Infrared (IR) systems are the standard, they often reach a physical limit. Here is a technical deep dive into why this happens and how UV/UV LED technology serves as the definitive solution.
1. The "Heat Shield" Effect: Why Conventional Drying Fails
In sheet-fed gravure, the ink (acting as an adhesive) is applied in heavy volumes to hold the flocking fibers. This creates two specific challenges:
-
The Insulation Barrier: Once the fibers are applied, they act as a thermal insulator. Conventional convective hot air struggles to penetrate this dense "forest" of fibers to reach the ink base.
-
Surface Skinning vs. Trapped Solvents: High-intensity heat can cause the surface of the ink to dry too quickly, forming a "skin." This traps wet solvents underneath, leading to a "dry-to-touch" surface that later fails under the physical pressure of a heavy paper stack.
2. The Mechanics of IR Drying in Flocking
Infrared (IR) systems are superior to hot air because they use radiation to penetrate the fiber layer.
-
Medium-Wave IR Advantage: For thick flocking adhesives, medium-wave IR is most effective as its wavelength matches the absorption spectrum of organic ink molecules, promoting internal heating rather than just surface evaporation.
-
The Limit: Even with IR, high-speed production (above 8,000 sheets/hour) often outpaces the evaporation rate required for total stability.
3. The UV Intervention: Moving from Drying to Curing
When physical evaporation (Hot Air/IR) hits a wall, Chemical Curing (UV/UV LED) is the professional upgrade.
Expert Insight: UV systems are not just an alternative; they are a "forced curing" insurance policy for high-volume industrial lines.
Why Integrate UV/UV LED into your Sheet-fed Gravure Line?
-
Instant Polymerization: Unlike IR, which relies on solvent exit, UV light triggers a photochemical reaction. The ink transforms from liquid to a solid 3D-linked polymer in milliseconds.
-
Depth of Cure with 395nm LED: Standard mercury lamps may struggle with opacity, but UV LED (specifically 395nm or 385nm peaks) offers high-intensity, long-wave penetration. This ensures the adhesive is hardened all the way to the paper substrate.
-
Cold Curing for Heat-Sensitive Substrates: For metallic cards or film-laminated paper common in sheet-fed gravure, UV LED provides a "cool" cure, preventing substrate warping or curling caused by excessive IR heat.
4. Technical Checklist for Production Managers
If you are experiencing drying failures on your line, follow this diagnostic path:
-
Air Velocity vs. Volume: Ensure your hot air system is stripping the "saturated vapor layer" from the fibers, not just swirling hot air around.
-
Thermal Gradient: Check if your dryer profile allows for "flash-off" before high-heat IR to prevent skinning.
-
The UV Upgrade: If stack blocking persists at high speeds, consider retrofitting a High-Power UV LED Curing Station at the end of the drying bridge.
Conclusion
Solving flocking ink issues requires a transition from simple "drying" to strategic "curing." By combining the solvent-removal power of hot air with the deep-penetrating curing of UV LED technology, manufacturers can achieve higher speeds and zero-defect output.
