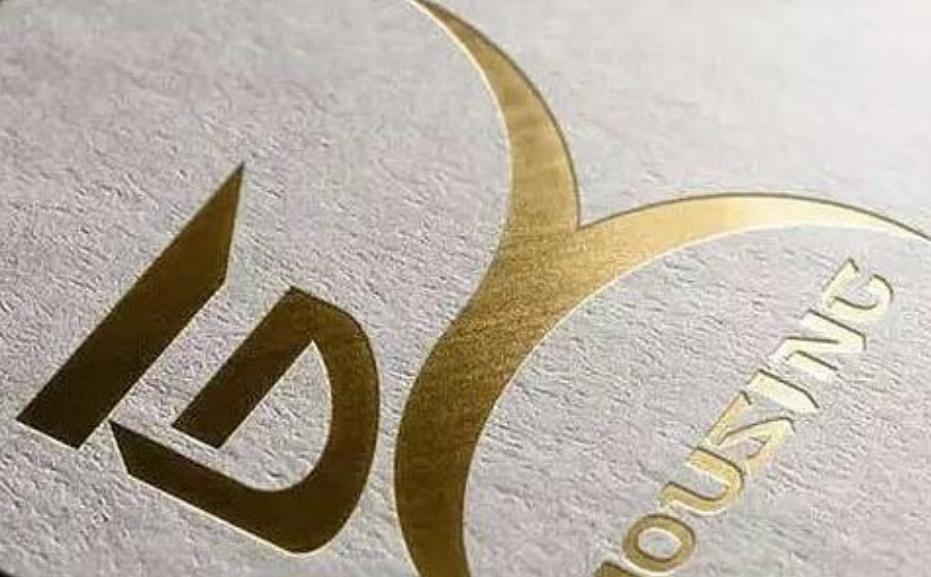

Troubleshooting Cold Foiling: How to Fix Picking and Flaking in High-End Packaging

In the world of premium packaging, Cold Foiling has revolutionized the way we apply metallic effects, offering high speed and incredible detail. However, achieving a "mirror-like" finish on luxury folding cartons or cosmetic labels is not without its challenges.

The two most persistent enemies of a perfect finish are Picking (jagged edges) and Flaking (metallic dust or peeling). If your production line is struggling with these issues, this technical guide will help you identify the root causes and implement industrial-grade solutions.

1. Defining the Problem: Picking vs. Flaking

Before adjusting your press, you must accurately diagnose the symptom:

• Picking (Plucking): This occurs when the foil does not break cleanly at the edges of the printed design. It results in "hairy" or jagged borders and can even pull away parts of the base ink.

• Flaking (Dusting/Peeling): This is an adhesion failure. The foil may look good initially but flakes off when rubbed, or small metallic particles contaminate non-image areas of the substrate.

2. Root Causes and Professional Solutions

A. Adhesive Management: The "Goldilocks" Rule

The UV adhesive is the foundation of the cold foil process.

• The Issue: Too much adhesive causes "squeeze-out" under the pressure roller, leading to Picking. Too little adhesive results in poor bonding, leading to Flaking.

• The Solution: Optimize your Anilox Roller selection. For fine lines and small text, use a higher line screen (e.g., 10-12 $cm^3/m^2$ volume). Ensure the adhesive viscosity is consistent throughout the run.

B. Substrate Surface Tension (Dyne Levels)

High-end packaging often utilizes "difficult" substrates like soft-touch films, PET, or metallic boards.

• The Issue: If the substrate's surface energy is too low, the adhesive cannot "wet out" properly.

• The Solution: Always test the substrate with Dyne pens. For cold foiling, a minimum of 38-40 dynes/cm is required. If the level is low, integrate an inline Corona Treatment to increase surface receptivity.

C. UV Curing Dynamics

• The Issue: If the UV lamps are aging or the press speed is too high, the adhesive doesn't fully polymerize. This causes the foil to remain "tacky" and peel off later (Flaking).

• The Solution: Regularly measure UV output using a radiometer. Ensure the bulbs are clean and the reflectors are focused. For high-speed lines, consider LED-UV systems which offer more consistent curing peaks.

D. The Stripping Angle and Foil Tension

• The Issue: If the foil is stripped from the substrate at an aggressive or vibrating angle, it creates mechanical stress that tears the foil prematurely, causing Picking.

• The Solution: Fine-tune the position of the Stripping Roller. The separation should be as smooth as possible. Use a "large diameter" stripping roller to reduce the snap-off force.

4. Why Detail Matters in High-End Packaging

In the luxury sector—whether it’s for spirits, cosmetics, or electronics—the Delta E of the color and the crispness of the foil are non-negotiable. A "shabby" foil edge suggests a low-quality product inside. By mastering these variables, you move from being a "vendor" to a "strategic partner" for global brands.

Conclusion

Troubleshooting cold foiling is a science of balance. By controlling the interaction between the Adhesive, Substrate, and Curing system, you can eliminate downtime and deliver the flawless metallic finishes that premium brands demand.
