Introduction: Veteran Reinvigorated, Efficiency Doubled
In the printing industry, the Roland 300 is renowned for its exceptional mechanical stability and precise registration. However, traditional powder spraying and long-distance drying systems feel somewhat inadequate in today's fast-paced market with high environmental demands.

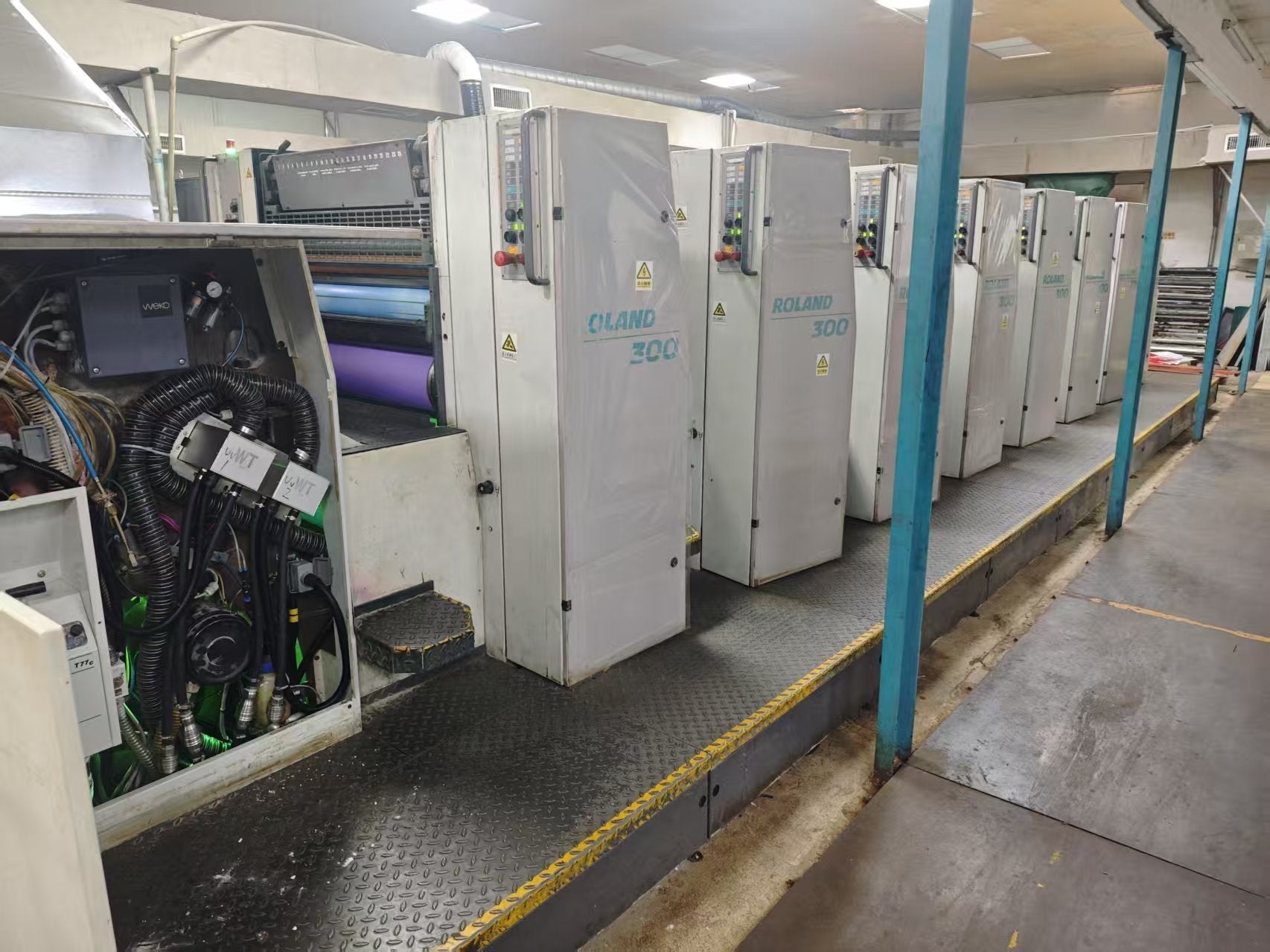

Recently, we successfully customized and installed a brand-new UV LED hybrid curing system for a Roland 300 offset press that had been in service for many years. This retrofit not only solved the problem of slow-drying conventional inks but also gave this "veteran" the ability to challenge special paper and plastic substrates.
Why Choose UV LED Retrofitting?
For owners of older Roland 300 models, UV LED is not a simple "accessory" but a performance leap:
-
Eliminate Powder Spraying Completely: Instant curing means no more sticking in the delivery stack, and a cleaner working environment.
-
Reduce Thermal Deformation: LEDs are cold light sources. Even when working on thin films or ultra-thin paper, there's no misregistration caused by high temperatures.
-
Ultra-Fast Delivery: Prints dry instantly, eliminating the 24-hour waiting period before turning the sheets or moving to post-press processes like cutting.
Energy Saving and Emission Reduction: Compared to traditional mercury lamps, LED systems reduce energy consumption by approximately 70% to 80%. They require no warm-up and are ready for use immediately upon being turned on.
Measured Performance After Retrofitting
During the testing phase after installation, this Roland 300 demonstrated surprising performance:
| Test Item | Before Retrofit (Conventional Ink/Powder) | After Retrofit (UV LED Hybrid System) |
| Drying Speed | Requires 12-24 hours | Instant drying, ready for post-processing |
| Substrate Adaptability | Limited to ordinary paper | Special paper, gold/silver card, PET/PVC |
| Surface Effect | Dull color, powdery feel | Vibrant color, high gloss |
| Power Consumption | Continuous high-power operation | On-demand lighting, overall energy saving 75% |
Conclusion: Increasing the Value of Your Assets
Through this installation, the customer not only saved the huge cost of purchasing a new machine but also achieved a transformation towards high-value-added business on their existing equipment. If you also possess similar older Roland, Heidelberg, or Komori models, consider a UV LED retrofit to awaken their second life.
Observe the UV LED hybrid system running at a speed of 10,000 sheets per hour on a Roland 300 offset printing press.
